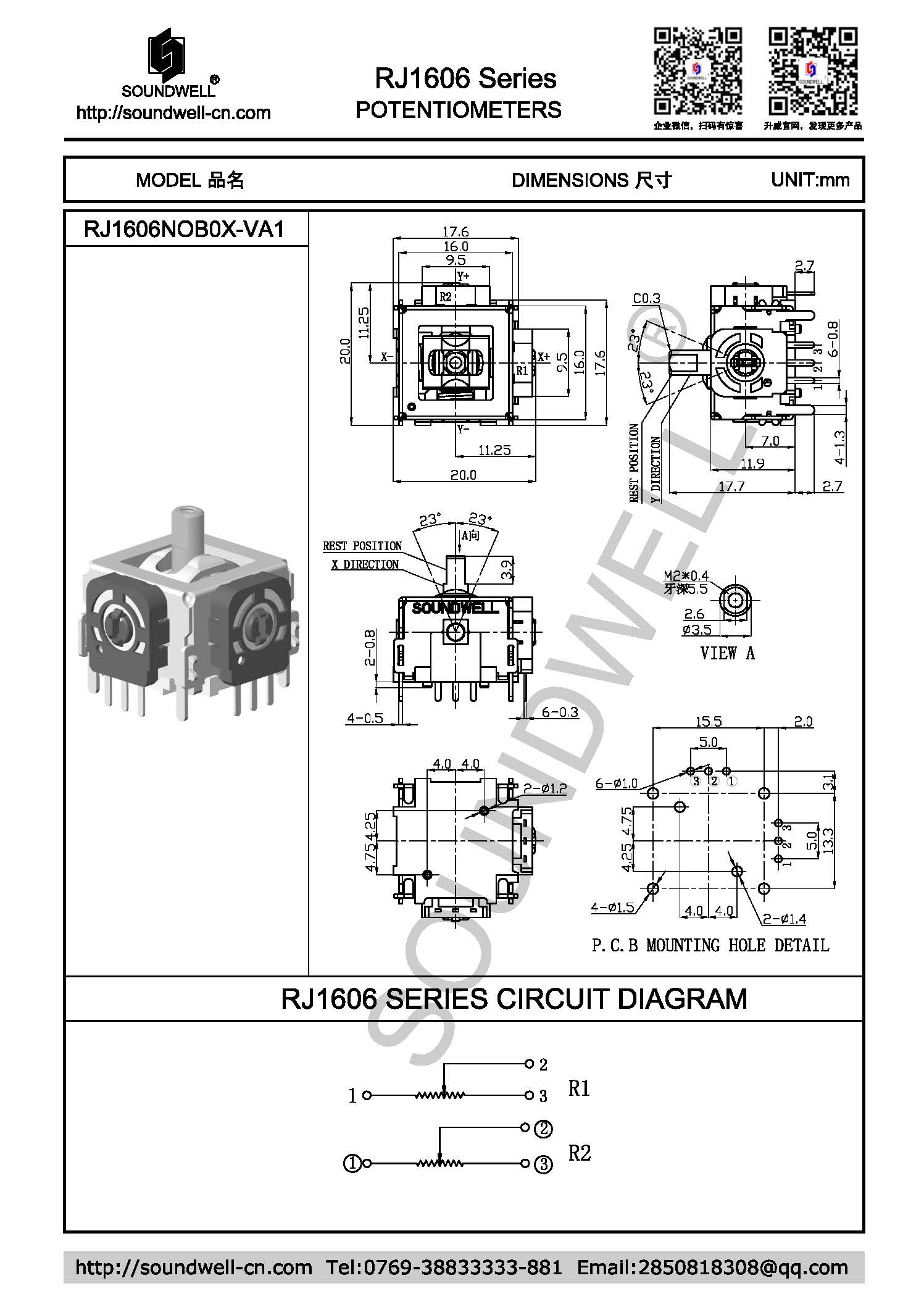

Potentiometer model： |
RJ1606 series |
|
| Applications： |
UAV control handles, electronic toys |
|
| Product Features: |
Long life with smooth operation; High stopping strength; Excellent offset precision; |
|
| Functions： |
The main functions are direction control, menu selection, etc. |
|
| Main Specifications: |
Dimensions: 16mm Rated power: 0.0125W Maximum operating voltage: AC 50V DC 5V Voltage divider error: 44%～56% Operating angle: 23°Max on one side Operating temperature: -10℃～70℃ Rotational life: 1,000,000 cycles Min |
ONE、MECHANICAL CHARACTERISTIC
1. Lever Operating Force: 160±50gf.cm
2. Operating angle: 23° Max on one side
TWO、ELECTRICAL CHARACTERISTIC
1. Rated power: 0.0125W
2. Maximum operating voltage: AC 50V DC 5V
3. Voltage divider error: 44%～56%
4. Insulation resistance: 100M? 1 Minute at DC 250V
5. Dielectric voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 1,000,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
